一丶申请AppKey与AppSecret

与管理员联系获取appKey与appSecret，appKey是与数字人平台的客户渠道绑定的。

二丶免登录服务端接入

2.1 AppKey+AppSecret 换 rabbitToken

服务调用数字人开放平台接口获取rabbitToken，接口文档地址：获取rabbitToken

rabbitToken 是调用所有数字人开放平台接口的令牌。

请妥善保管appKey和appSecret ,一般保存在服务端配置文件中。

2.2 携带rabbitToken 进行数字人平台登录并获取到重定向地址。

服务端提供联合登录接口给前端，接口内部逻辑：调用数字人开放平台接口（thirdId+thirdUrl）获取到重定向地址，并进行重定向。接口文档地址：获取重定向URL

数字人开放平台内部逻辑：

判断是否绑定第三方用户Id（thirdId）
生成ticket 对于缓存了thirdId等
已绑定：生成数字人平台tz_token，并保存到ticket中
未绑定：后续要携带thirdId跳转到登录页面进行登录并绑定thirdId

注意：1. 接口请求头要携带tabbitToken

2. 如果是内嵌ifream形式 thirdUrl必须传入当前域名，数字人平台编辑器必须是同源。

2.3 前端调用服务端联合登录接口，进行免登录。

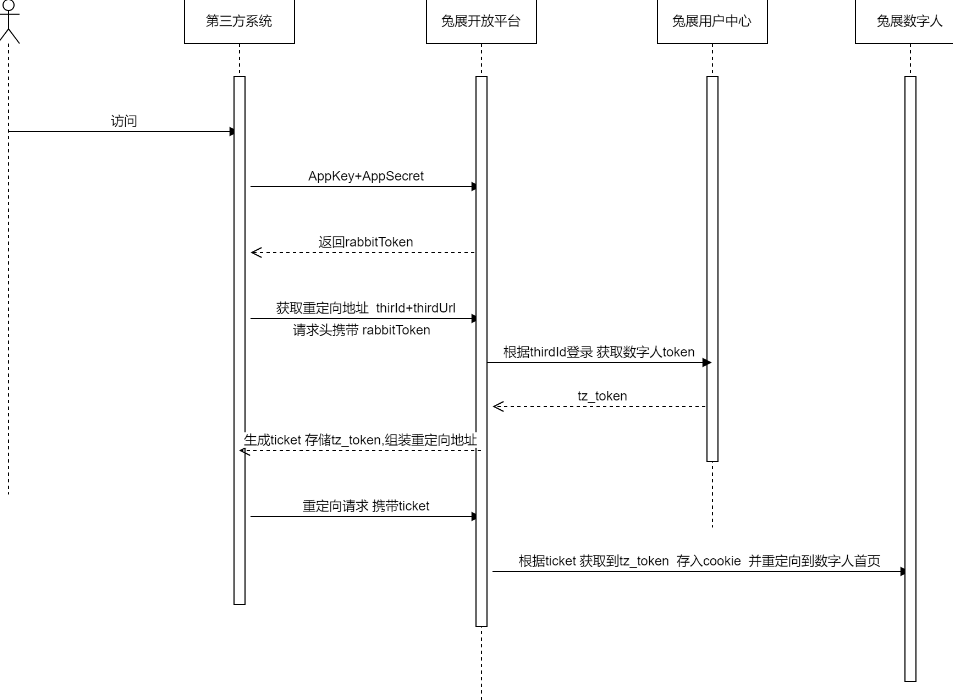

数字人平台 > 数字人免登录接入说明 > image2024-2-27_17-1-57.png

三丶Ifream内嵌页面处理

3.1 Nginx处理

要保证数字人平台与第三方是同一个域名，不然数字人编辑器内有浏览器同源策略限制。

需要第三方nginx代理一下数字人平台的域名。

配置参考如下：

server {
        listen 80;
        listen 443 ssl http2;
        ssl_certificate "/opt/app/all_config/abug/cert.pem";
        ssl_certificate_key "/opt/app/all_config/abug/key.pem";
        ssl_protocols TLSv1.1 TLSv1.2;
        ssl_ciphers ECDHE-RSA-AES128-GCM-SHA256:HIGH:!aNULL:!MD5:!RC4:!DHE;
        ssl_prefer_server_ciphers on;
        ssl_session_cache shared:SSL:10m;
        ssl_session_timeout 10m;
        server_name abug.jy520.fun;
        # 这里是第三方主页
        location / {
              # 需要加两个允许跨域得头 不然无法进入数字人编辑器
              add_header Cross-Origin-Opener-Policy same-origin;
              add_header Cross-Origin-Embedder-Policy require-corp;
              root /opt/app;
              index test.html;
        }
        # 代理兔展后端
        location  /api/rabbitlab{
           proxy_pass https://digitalman.h5no1.com;
        }
        # 代理兔展开放平台
        location  /open/platform{
           proxy_pass https://digitalman.h5no1.com;
        }
        # 代理兔展前端页面
        location /digitalman {
           proxy_pass https://digitalman.h5no1.com;
       }
}

3.2 前端Ifream参考

其中 /demo/unionLogin 接口是第三方服务端提供也就是2.2步中的。

四丶示例代码

4.1后端接入示例：

@Slf4j
@Component
public class RabbitOpenPlatformManager {

    @Value("${openPlatform.host:https://test.digitalman.h5no1.com}")
    private String host;
    @Value("${openPlatform.appKey:069251338630322213976003}")
    private String appKey;
    @Value("${openPlatform.appSecret:924025c658bab641b4432b31921a37007d989e4be36f21c06dd477d2fb604d36}")
    private String appSecret;
    @Value("${openPlatform.thirdUrl:https://test.digitalman.h5no1.com}")
    private String thirdUrl;
    private static final String TOKEN_KEY = "openPlatform:token";
    @Resource
    private RedisTemplate<String, String> redisTemplate;
    private final RestTemplate restTemplate = new RestTemplate();


    /**
     * 获得令牌
     *
     * @return {@link String}
     */
    public String getToken() {
        String rabbitToken = redisTemplate.opsForValue().get(TOKEN_KEY);
        if (rabbitToken != null) {
            return rabbitToken;
        }
        String url = "/open/platform/auth/getRabbitToken";
        HashMap<String, String> map = new HashMap<>(2);
        map.put("appKey", appKey);
        map.put("appSecret", appSecret);
        ParameterizedTypeReference<RabbitResponse<AppLoginResponse>> responseType = new ParameterizedTypeReference<RabbitResponse<AppLoginResponse>>() {
        };
        HttpHeaders headers = new HttpHeaders();
        headers.setContentType(MediaType.parseMediaType("application/json; charset=UTF-8"));
        HttpEntity<String> entity = new HttpEntity<>(JSONUtil.toJsonStr(map), headers);
        ResponseEntity<RabbitResponse<AppLoginResponse>> exchange = restTemplate.exchange(host + url, HttpMethod.POST, entity, responseType);
        RabbitResponse<AppLoginResponse> response = exchange.getBody();
        log.info("response:{}", response);
        if (response == null) {
            throw new RuntimeException("响应异常");
        }
        if ("0".equals(response.getCode())) {
            AppLoginResponse appLoginResponse = response.getData();
            rabbitToken = appLoginResponse.getRabbitToken();
            redisTemplate.opsForValue().set(TOKEN_KEY, rabbitToken, appLoginResponse.getExpireIn() / 2, TimeUnit.SECONDS);
            return rabbitToken;
        } else {
            throw new RuntimeException(response.getErrorMsg());
        }
    }

    /**
     * 联合登录
     *
     * @param thirdId 第三方账户id
     * @return {@link String}
     */
    public String unionLogin(String thirdId) {
        String url = "/open/platform/digital/third/getRedirectUrl";
        HashMap<String, String> map = new HashMap<>(2);
        map.put("thirdId", thirdId);
        map.put("thirdUrl", thirdUrl);
        ParameterizedTypeReference<RabbitResponse<RedirectUrlVo>> responseType = new ParameterizedTypeReference<RabbitResponse<RedirectUrlVo>>() {
        };
        HttpHeaders headers = new HttpHeaders();
        headers.set("rabbitToken", getToken());
        headers.setContentType(MediaType.parseMediaType("application/json; charset=UTF-8"));
        HttpEntity<String> entity = new HttpEntity<>(JSONUtil.toJsonStr(map), headers);
        ResponseEntity<RabbitResponse<RedirectUrlVo>> exchange = restTemplate.exchange(host + url, HttpMethod.POST, entity, responseType);
        RabbitResponse<RedirectUrlVo> response = exchange.getBody();
        if (response == null) {
            throw new RuntimeException("响应异常");
        }
        if ("0".equals(response.getCode())) {
            RedirectUrlVo data = response.getData();
            return data.getRedirectUrl();
        } else {
            throw new RuntimeException(response.getErrorMsg());
        }
    }

    @Data
    static class RabbitResponse<T> {
        private String code;
        private String showMsg;
        private String errorMsg;
        private String requestId;
        private T data;
    }

    @Data
    static class AppLoginResponse {
        /**
         * 授权令牌
         */
        private String rabbitToken;

        /**
         * 授权令牌 的有效期
         */
        private Long expireIn;

    }

    @Data
    static class RedirectUrlVo {

        /**
         * 重定向地址
         */
        private String redirectUrl;
    }

}

@RequestMapping("/")
@RestController
public class DemoController {
    @Resource
    private RabbitOpenPlatformManager rabbitOpenPlatformManager;

    @GetMapping("/unionLogin")
    public void unionLogin(String thirdId, HttpServletResponse response) throws IOException {
        String redirectUrl = rabbitOpenPlatformManager.unionLogin(thirdId);
        response.sendRedirect(redirectUrl);
    }

}

4.2前端示例

<!DOCTYPE html>
<html>
	<head>
		<meta charset="utf-8">
		<title></title>
	</head>
	<body>
		<iframe src="https://xxx/demo/unionLogin?thirdId=third_3"  height="800px" width="100%" id="myIframe"></iframe>
	</body>
</html>
